3000KVA 400V AC Resistive Load Bank Outdoor Indoor For Surgery Operation

  • 1
  • 2
  • 3

Brand Name : KINGWAY

Model Number : KLB-3000

Certification : CE,ISO,ROHS

Place of Origin : CHINA

MOQ : 1 UNIT

Price : USD83215-85250USD

Payment Terms : L/C, T/T, Western Union

Supply Ability : 4000 UNITS PER YEAR

Delivery Time : 50 Working Days

Packaging Details : Wooden Carton

Product Name : Kingway Resistive Load Bank

Rated Volage : 400V

Frequency : 50HZ

Max Load Power : 3000KVA

Power Factor : 0.8

Communication Interface : RS232/RS485

Contact Now

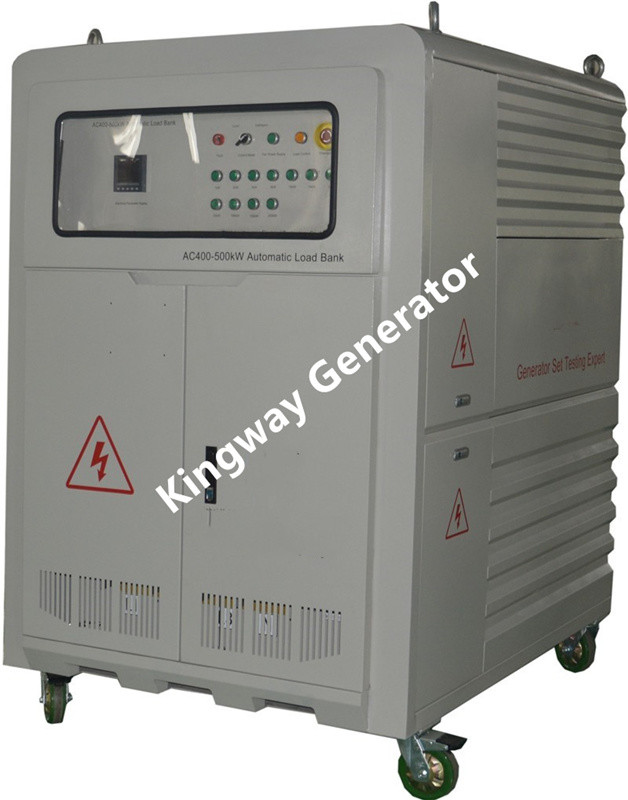

Kingway 3000KVA Resistive Load Bank for surgery operation

A load bank is a piece of electrical test equipment used to simulate an electrical load, to test an electric power source without connecting it to its normal operating load. During testing, adjustment, calibration, or verification procedures, a load bank is connected to the output of a power source, such as an electric generator, battery, servo amplifier or photovoltaic system, in place of its usual load.

Kingway load bank are designed for both portable and permanently installed applications and can confidently withstand everyday use in a demanding industrial or rental environment, testing range10-5000KW .

Technical Parameter

Rating Voltage/Frequency 400VAC, 3 phase 4 wire, 50Hz
Rated Load Power Resistive load: 3000KVA/2400KW
Load Step

1,2,2,5,10,10,20,50,50,100,100,200,200,200,200,200,

200,200,200,200,200,200,200,200,200,200,200,200kW. min step load: 1kW
PF(Power Factor) 0.8
Load Tolerance (each step) ±5%
Load Tolerance(overall) ±3%
Display Precision 0.5 class
Control Power External 400VAC/50Hz, 3 phase 4 wire
Wire Connection

Load power supply input——Copper bar (star coupling)

Control power supply input——Connector-bar
Protect Class IP21 (working condition), IP65 ( non-working condition )
Insulation F
Duty Cycle Continuous
Cooling Type Force air cooling, horizontal air inlet and vertical air outlet
Transportation Hoisting, there are lifting lug on top and castors at the bottom of casing
Casing Color Grey(RAL7035)or as required
Dimension About 6096mm*2438mm*2591mm
Weight About 4650kgs
Operating Environment Parameter
Workplace Outdoor
Ambient Temperature -20℃～+50℃
Relative Humidity ≤95%
Altitude ≤2500 meter
Atmospheric Pressure 86～106kPa
Brands of Main Components
Contactor Schneider
Fuse Miro
PLC Siemens
Data processing software Kingway(self-developed)
Alloy Resistance Kingway(self-developed)
